Praxis bottom bracket 41 mm Press Fit BB86 road BB90 BB92 MTB frame M24 GXP 24 22 mm spindle, steel bearing 86-0301

Praxis M24-BB86/BB90/BB92

This is a 41 mm D Press Fit M24/GxP bottom bracket designed for installing an M24/GxP steel spindle crank into the following frames:

• BB86 road frame

• BB90 MTB frame

• BB92 MTB frame

SKU: 86-0301

Specifications

Product:

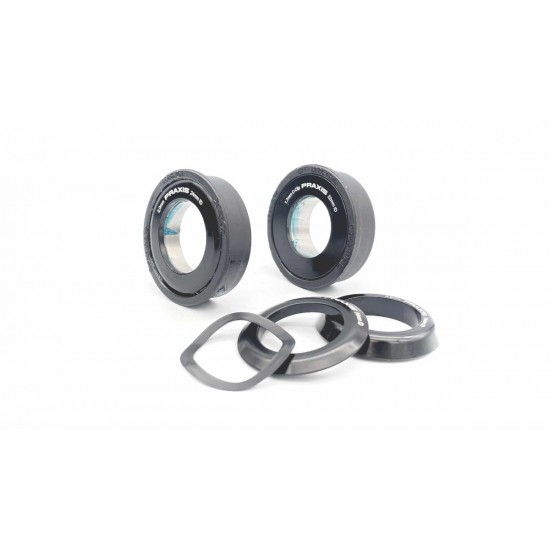

M24 BB86/90/92 bottom bracket – see photos above

Bearings:
Cartridge steel bearings

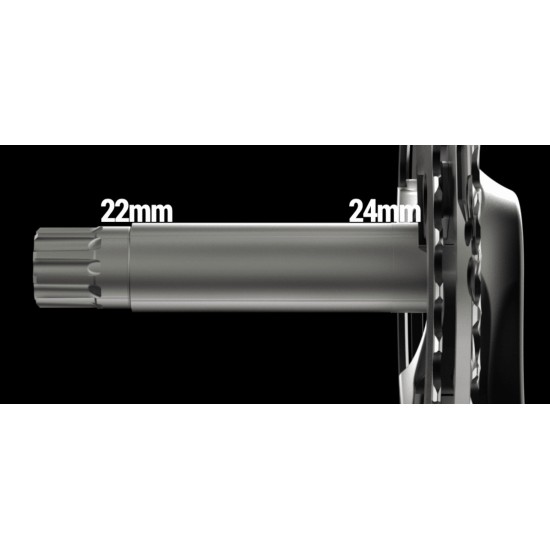

24 mm drive side / 22 mm non-drive side

Buy this if:
You are installing a Praxis M24 steel spindle crank into a frame with a 41 mm press fit bore and the measurements listed below.
Also compatible with SRAM GxP™ steel spindle cranks.

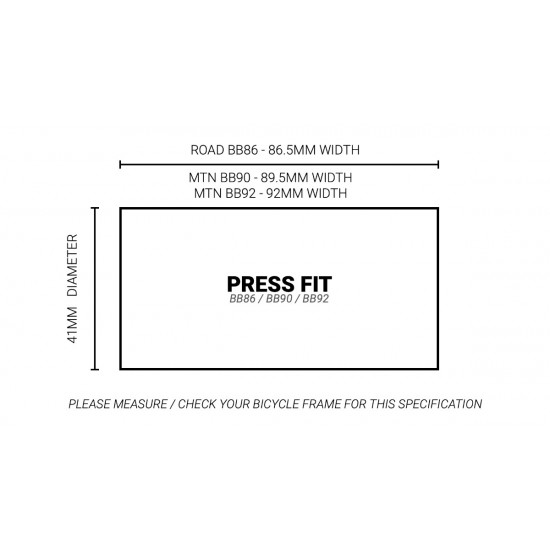

Measurements:
This single bottom bracket is used for frame types with a 41 mm diameter:

• BB86 – road | 86.5 mm width

• BB90 – MTB only | 89.5 mm width

• BB92 – MTB only | 92 mm width

Manufacturing:
Delrin cups

Tool:
Use any standard bottom bracket press tool. See manual above.

Average weight:
100 g
