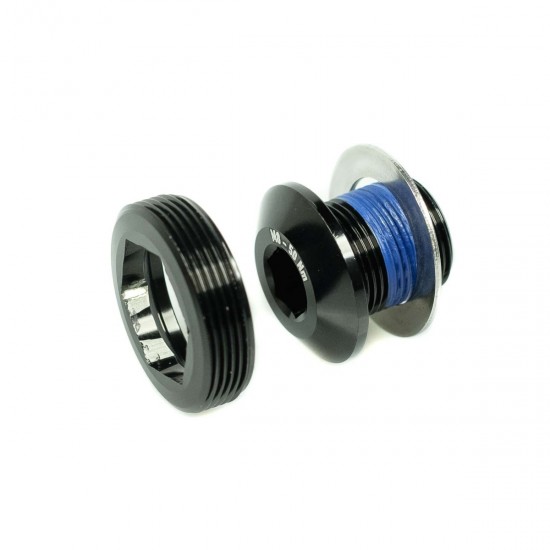

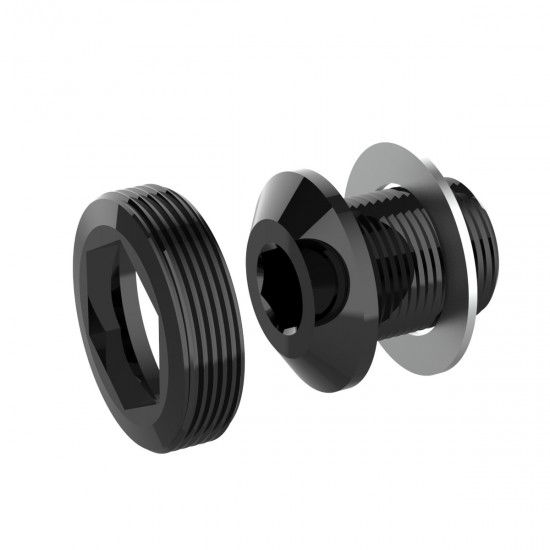

Praxis M24 bolt/extractor
This main bolt and self-extractor is compatible with all Praxis M24 cranks and many Praxis eCranks.
SKU: TP-0024
Specifications
Product:
M24 main bolt and self-extractor for Praxis M24 crank arms
Buy this if:
You are fixing or replacing the main bolt on an M24 crank arm. Example cranks: Alba M24, Cadet M24, and many Praxis eCrank arms
Design:
-
Main bolt and self-extractor all in one kit
-
8 mm hex for installation and removal of crank arm
-
16 mm hex to unthread the extractor if needed
-
Bolt info: M15 x 1.0 pitch | Length: 15 mm
Torque:
48–52 Nm using the 8 mm hex for main bolt installation/removal
Note:

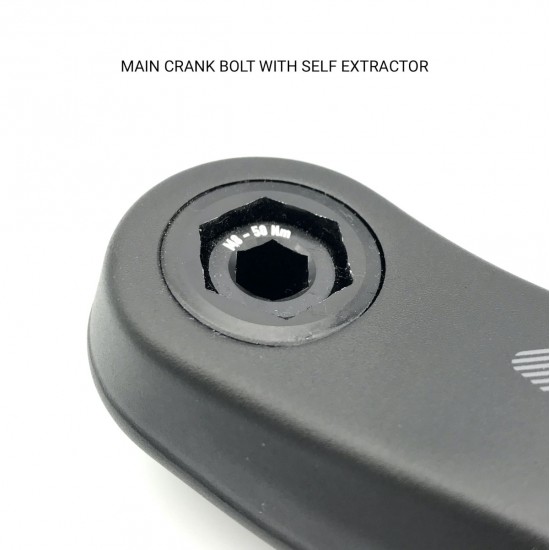

Check the reference photos to make sure you have an M24 crank arm/bolt
