FSA Orbit Equipe Bicycle Headset

Product Description

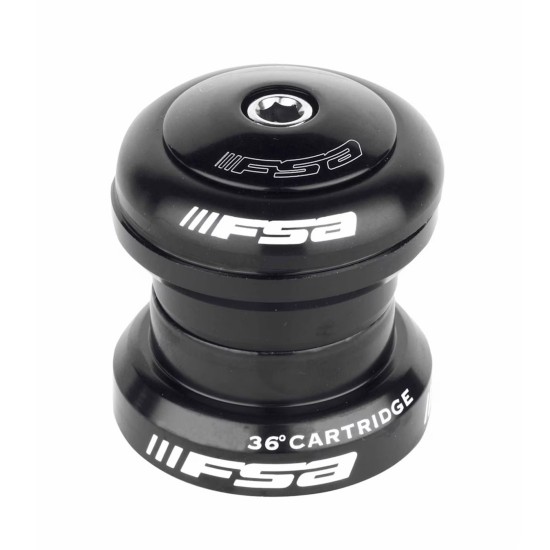

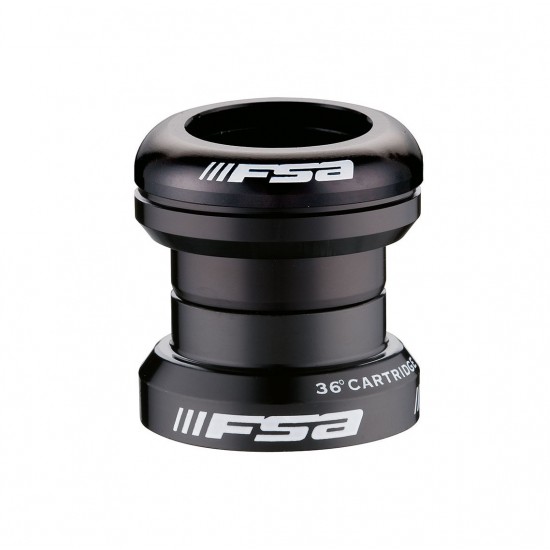

The FSA Orbit Equipe is a solid and reliable choice for 1 1/8” frames. It features a robust forged steel lower cup for maximum durability, while the upper cup is made from forged 6061 T6 aluminium, complemented by an alloy top cover.
Inside, the headset uses two low-maintenance, easy-to-replace sealed angular contact cartridge bearings.

Designed for intensive MTB and downhill use, the Orbit Equipe combines strength, stability, and light weight. The sealed bearing system ensures long service life even under demanding riding conditions.

Key Features

• Lightweight, robust and highly durable headset

• 1 1/8”, compatible with threadless forks

• Sealed cartridge bearings

• Forged alloy upper cup and steel lower cup

• Angular contact bearings with black seals

• Alloy top cover

Technical Overview

• Stack Height:
    • Approx. 28.6 mm

• Required Head Tube Inner Diameter:
    • 34 mm

• Weight:
    • Approx. 115 g

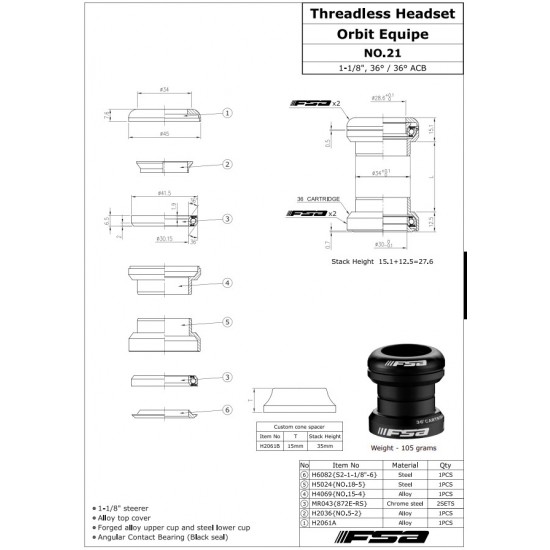

Detailed Technical Specifications

• Material:
    • Aluminium, steel

• Bearings:
    • Angular contact ball bearings (36° / 36° ACB)

• Upper Insert Depth:
    • 10 mm

• Lower Insert Depth:
    • 10 mm

• Top Stack Height:
    • 15.4 mm

• Bottom Stack Height:
    • 12.6 mm

• Top Outer Diameter:
    • 34 mm

• Top Inner Diameter:
    • 28.6 mm

• Bottom Outer Diameter:
    • 34 mm

• Bottom Inner Diameter:
    • 30 mm

• Seals:
    • Black seals

• Top Cap:
    • Aluminium

Reference

• 101-1055 – HS Orbit Equipe 7.5 mm alloy, 1 1/8”

General Specifications

• Type:
    • Headset

• Manufacturer:
    • FSA

• Color:
    • Neutral

• Discipline:
    • Road
    • MTB
    • Urban / Commuting

• Material:
    • Alloy

• Weight:
    • 105 g

• Headset Category:
    • Threadless

• Top Cap Height:
    • 7.6 mm
