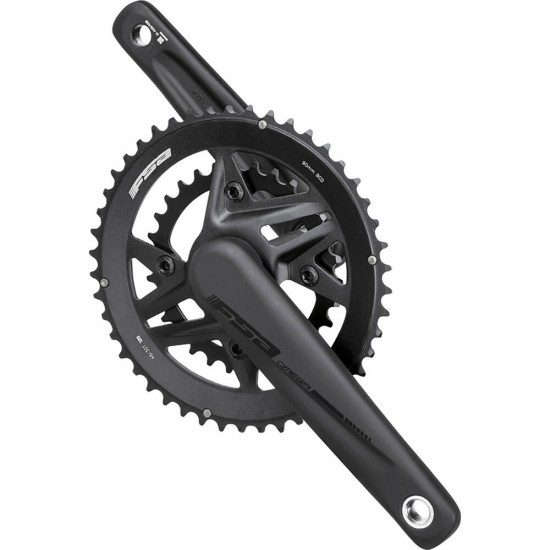

FSA OMEGA DIRECT MOUNT 2X MEGAEXO CRANKSET (Road Series)
Product description
The FSA Omega Direct Mount 2x MegaExo crankset is designed for road use, offering a reliable and durable construction with modern direct mount chainring technology. The crankset features strong aluminum crank arms and a forged chromoly spindle for efficient power transfer and long-term durability.
Key features
• Die-cast aluminum crank arms
• 19 mm forged chromoly spindle
• Chromoly chainring bolts
• Direct Mount chainring system
Sizes
• Crank length: 165 / 170 / 172.5 / 175 mm
• BCD: Direct Mount / 90 mm
• Q-Factor: 146 mm
• Chainline: 45 mm
Finish
• Painted bead blasted black
• Printed graphics
Weight
• 865 g (50/34T version)
Drivetrain compatibility
• Shimano / FSA 12-speed
Available configurations

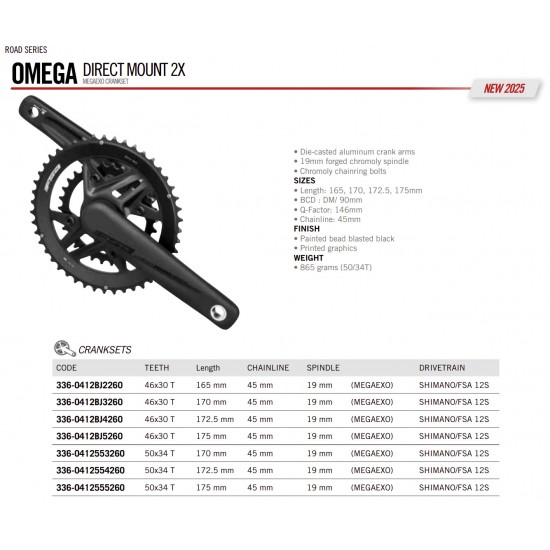

| Code | Chainrings | Length | Chainline | Spindle | Drivetrain |
|---|
| 336-0412BJ2260 | 46x30T | 165 mm | 45 mm | 19 mm (MegaExo) | Shimano/FSA 12s |
| 336-0412BJ3260 | 46x30T | 170 mm | 45 mm | 19 mm (MegaExo) | Shimano/FSA 12s |
| 336-0412BJ4260 | 46x30T | 172.5 mm | 45 mm | 19 mm (MegaExo) | Shimano/FSA 12s |
| 336-0412BJ5260 | 46x30T | 175 mm | 45 mm | 19 mm (MegaExo) | Shimano/FSA 12s |
| 336-0412553260 | 50x34T | 170 mm | 45 mm | 19 mm (MegaExo) | Shimano/FSA 12s |
| 336-0412554260 | 50x34T | 172.5 mm | 45 mm | 19 mm (MegaExo) | Shimano/FSA 12s |
| 336-0412555260 | 50x34T | 175 mm | 45 mm | 19 mm (MegaExo) | Shimano/FSA 12s |
