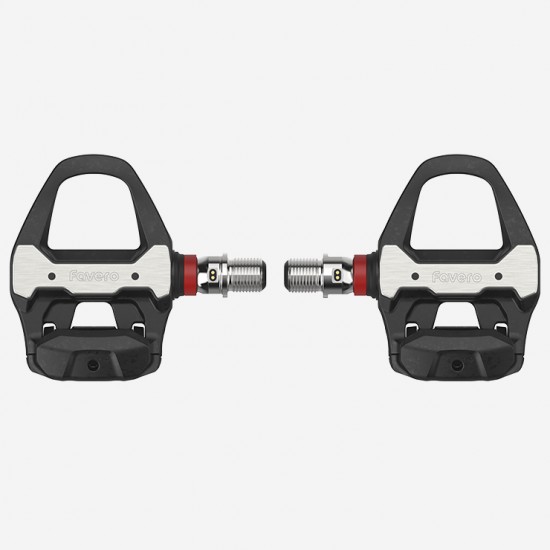

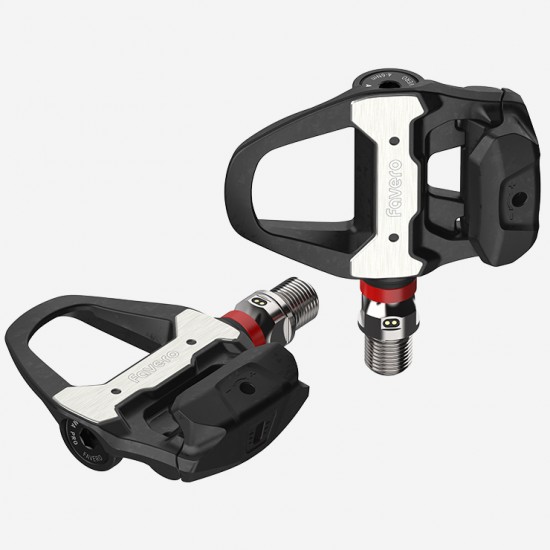

Assioma PRO RS-2
SPD-SL® power meter with power sensor on both sides.
The best choice to take full advantage of the real dual-sided measurement.
SKU: 773-20-02
Overview
Assioma PRO RS is the lightest road power meter pedal available, with just 123.5g per pedal.
Compatible with Shimano® SPD-SL® cleats, it delivers pro-level performance and over 60 hours of use per charge—no power dropouts.
The power spindle, which safely houses all the important electronic parts and battery, is completely sealed and independent from the pedal body. This so-called “split approach” makes it durable, and extremely easy to maintain.
Its sleek design, with a Q-factor of just +53mm and a stack height of 10.5mm, makes it perfect to improve performance and achieve results on your road training.
The Assioma PRO RS power meter offers ±1% accuracy thanks to the IAV Power System, and the most complete power data reading available with a wealth of advanced metrics. A modular design lets you switch between road and MTB bodies while keeping the same power sensor.
The best power meter pedal to train with precision and ride with confidence.
Main features
Left pedal with power sensor
Right pedal with power sensor
100% Shimano® SPD-SL® cleat compatibility
Lightest power pedal – Just 123.5 g per side
±1% power accuracy even with oval chainrings
Rechargeable battery – 60+ hours per charge
Advanced cycling metrics (PCO included - Platform Center Offset)
Pedal body in carbon-fibre tech-polymers
Low stack height (10.5 mm)
Standard Q-factor (+53mm)
Modular design – interchangeable pedal bodies (road/MTB)
Made in Italy
Tech specs
SPD-SL® road power pedals with power meter on both sides
Weight per power pedal: 123.5 g
L/R Balance
Cadence sensor: included, built-in
Gyroscope: included, built-in
Power calculation system: IAV (Instantaneous Angular Velocity-based)
Cycling Dynamics: available

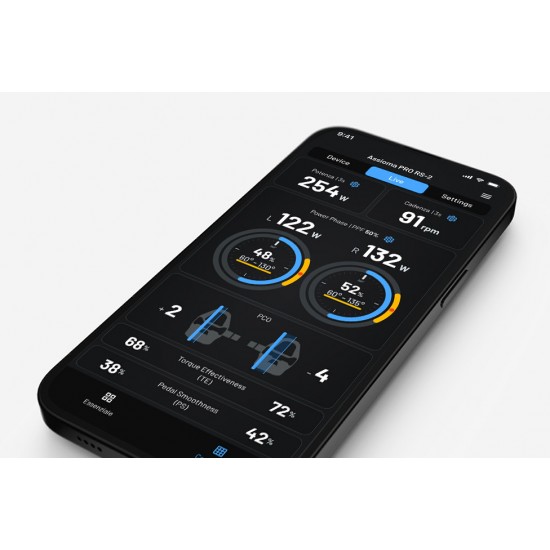

Data visible via ANT+ or on the Favero Assioma app:
Power
Cadence
L/R Balance
PCO
Power Phase (PP)
Pedal Smoothness (PS)
Torque Effectiveness (TE)
Rider Position (no App Favero Assioma)
Data visible via Bluetooth:
Power
Cadence
L/R Balance
Oval-chainrings compatible: Yes
Battery type: rechargeable, lithium-ion
Battery life: at least 60 hours
Radio communication: ANT+, Bluetooth
Accuracy power measurement: ± 1%
Thermal compensation: yes
Waterproofness rating: IP67
Q-factor: +53mm
Pedal stack height: 10.5 mm
Compatible cleats:
Provided cleats (art. 773-20-64)
Shimano® SM-SH10, SM-SH11 or SM-SH12
Bike types: road cycling
Warranty: 2 yrs
Package content
Power meter with sensors on both sides
Two-way charging cable
2 Magnetic connectors
Shimano® compatible SPD-SL® cleats
4 Washers
Greasing tools kit
Warranty and safety manual
Welcome flyer
ASSIOMA PRO RS
Shimano®-compatible road power meter pedals
Full compatibility
Made in italy
Advanced metrics
Assioma PRO Power, Shimano® Feeling
Assioma PRO RS delivers cutting-edge accuracy and reliability for Shimano® lovers.
Engineered and made in Italy, this power meter pedal empowers you to maximize your potential on the bike.
Power training made simple
It installs in seconds, just like a regular pedal. The Assioma PRO RS also features auto-calibration and instant connectivity via Bluetooth and ANT+, ensuring a smooth, hassle-free ride.
A pedal like no other.
Easily swap your road power meter pedals between bikes and pair it with your favorite bike computers, smartwatches, or apps—TrainerRoad, Zwift, Rouvy, and more. Track your power data effortlessly on every paved road.
Innovation at the core

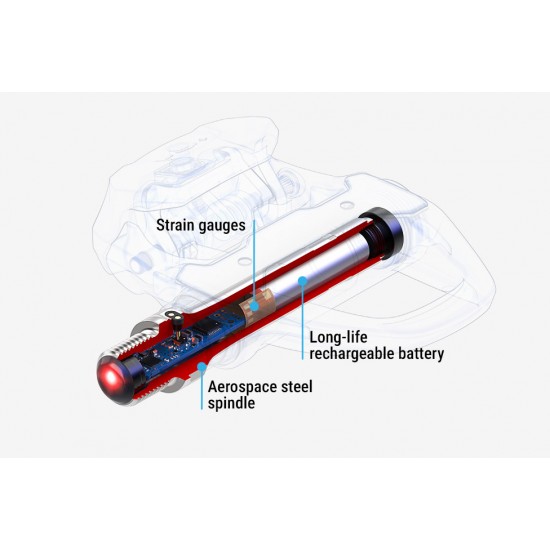

What sets it apart? It's the only power meter with electronics, strain gauges, and a rechargeable battery fully protected inside a sleek spindle for unmatched durability and long-term performance. With no electric contacts typical of replaceable batteries, there is no risk of battery-related power dropouts.
No power ports or battery compartments mean no risk of water ingress – backed by an IP67 rating for the whole product’s life, for unwavering reliability even in the harshest conditions.
With every watt maximized, no energy goes wasted
Unlock your riding potential with our 100% SPD-SL®-compatible power pedal offering precise clip-in/clip-out and a wide, adjustable release tension range, all in one place, unlike blade-spring pedals.
With a 10.5mm stack height for optimal power transfer and a standard +53mm Q-factor for tighter, precise cornering, the Assioma PRO RS is built for performance.
Ride with confidence
Experience the ultimate connection with your bike using our road power meter pedals—just 123.5g per pedal, crafted from carbon-fibre-reinforced techno-polymer, with a wide stainless-steel contact surface and premium needle roller bearings for unmatched stability.
From road to MTB in minutes
Want to switch from road to MTB and vice versa? With Assioma PRO, you can keep the same spindle and swap the pedal body in just a few simple steps without draining your wallet!
No need for adapters or special tools, and you're good to go.
PCO
Platform Center Offset
PP
Power Phase
RP
Rider Position
Every ride precisely measured, every time
Power and cadence are essential, but why stop there? With PCO, Power Phase, Rider Position, TE, PS, L/R balance and more, you gain deeper insights to refine every pedal stroke and push your limits. Unlock your full potential with advanced power data you can trust – accurate, repeatable, and consistent in any weather condition.
No guesswork, just reliable insights to elevate your performance. Pair Assioma PRO RS with your favorite devices for the ultimate training setup.
PCO: The game-changer
Among the few power meters on the market to offer PCO (Platform Centre Offset), Assioma PRO provides a groundbreaking metric that uncovers hidden asymmetries in a cyclist’s pedaling dynamics. By revealing how force is distributed across the pedal, it helps identify inefficiencies, poor cleat positioning, and muscle imbalances.
More than just a wattage reading, PCO highlights help you improve your pedaling technique and cleat positioning and may be helpful in preventing potential injuries.
IAV
Power System
OVAL
Chainring friendly
ATC
System
Precision in every condition
Thanks to IAV Power technology, Assioma PRO RS measures real power even during explosive sprints, high-cadence pedaling, or when using oval chainrings, ensuring unprecedented accuracy on Shimano®-compatible pedals.
A technology that sets the standard
Powered by a three-axis gyroscope, our IAV Power System captures every pedaling variation for unmatched accuracy. Because you deserve ±1% precision and consistent power reading in every ride and every time, no matter the external conditions.
Power always within reach
We all appreciate the convenience of rechargeable batteries, but did you know they also eliminate the frustrating power dropouts common with disposables?
With our magnetic charging system, you can power up both pedals simultaneously, ensuring seamless performance with over 60 hours of ride time on a single charge.
On the go? No problem. Top up anywhere with a standard power bank—whether you're at home, or traveling.
