DEDA GRAVEL Gera EDG Fork
Description
The Gera EDG is a superlight gravel fork weighing under 500 grams, featuring a clean, minimalist design perfect for both gravel and road use. Its straight blades ensure exceptional reactivity and handling precision on fast gravel sections or paved roads.
This is the first gravel fork designed to support a 180 mm disc rotor and to allow full internal cable routing through the frame via its D-shaped steerer and DCR system. Compatible with most modern carbon and metal frames, the Gera EDG provides the ideal balance between lightness, stiffness, and integration.
The fork is fully carbon with an integrated 45° crown race and offers generous tire clearance up to 45 mm (28”) or 50 mm (27.5”). It’s also dynamo hub ready (e.g. SON®), featuring provisions for neat internal routing of electric cables.

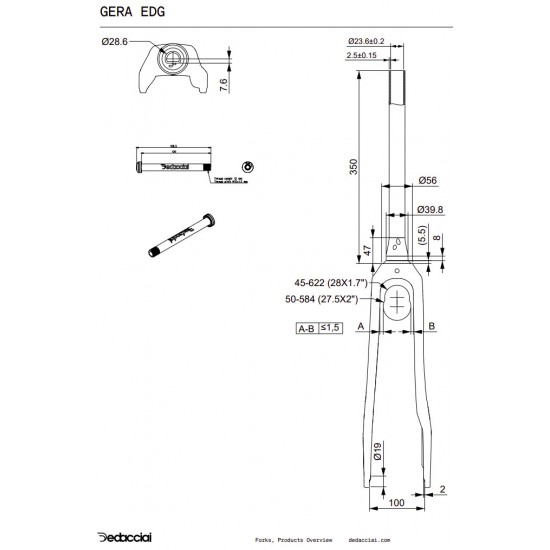

Tech Specs
Material:
Full carbon fiber, UD finish
Fork steerer:
D-Shape 1"1/8
Headset compatibility:
Upper bearing 1”1/8; lower bearing 1.5”, 45° integrated crown race
Steerer length:
350 mm

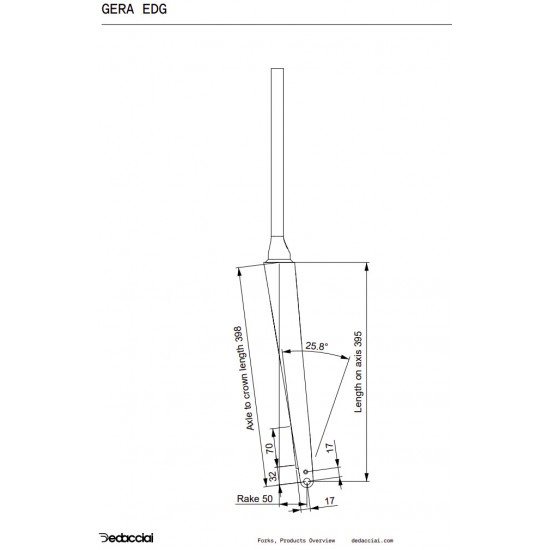

Axle-to-crown length:
398 mm
Rake:
50 mm
Axle compatibility:
100x12 mm thru-axle (included)
Crown diameter:
56 mm
Disc brake rotor compatibility:
Flat mount, 160 mm or 180 mm
Finish:
UD carbon with POB logo
Accessories included:
Weight:
498 g
Notes:
Frame compatibility:
Compatible with frames featuring internal cable routing and designed for Deda DCR headsets, Deda Classic 1, or tapered 1”1/8–1.5” / 1”1/4–1.5” / 1.5”–1.5” configurations
Stem compatibility:
All Deda stems, or stems with a wide opening between steerer and body to allow internal cable routing
Wheel and tire compatibility:
Bearing compatibility:
-
Upper: Headset/frame head tube 1”1/8, 1”1/4, or 1.5”
-
Lower: 1.5” bearing, 45° contact angle
Internal cable routing:
Minimum tire clearance at fork blade:
-
7 mm (28”x1.7”)
-
6 mm (27.5”x2.0”)
Wheel centering tolerance:
Designed for precise wheel alignment and consistent tire clearance.
